HUBER Sludge Acceptance Plant ROTAMAT® Ro3

Well-proven, efficient and rugged Septage Receiving Station

  • with integrated screenings press
  • with integrated screenings washing
  • no odour annoyance outside

This septage receiving station is used for mechanical treatment of septic sludge.

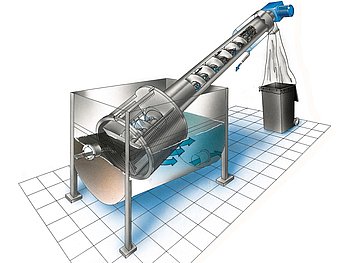

HUBER Fine Screen ROTAMAT® Ro1 is installed in a tank. The septic sludge is fed into the tank and, as it flows through the Fine Screen, all coarse material is retained. A screw conveyor with integrated screenings press removes the screenings from the tank, reduces their volume and weight and drops them into a container or bagging device. The entire treatment takes place in a fully enclosed system; odour nuisance is thus prevented.

The screenings are additionally washed which makes them suitable for landfill. The filtrate is blended into the wastewater for further treatment in the WWTP.
If an outstanding separation efficiency is required, every version of Septage Receiving Station can be alternatively equipped with the well-proven HUBER Rotary Drum Fine Screen ROTAMAT® Ro2.

The efficiency and rugged construction of this type of sludge acceptance plant is able to cope with throughputs up to 100 m³/h and has proved is reliability in every day operation. A compact construction in connection with intelligent technology provides the conditions for continuous operation – day after day, year after year.


The robust and efficient Ro3.1 version has become the most popular system of its kind. Its superior design and engineering guarantee most dependable operation – day after day, year after year.

The main component of this Sludge Acceptance Plant is the reliable HUBER Fine Screen ROTAMAT® Ro1. It excels with its high capacity, good separation efficiency and low head loss. Another exceptional feature is its integrated screenings press with all its benefits.

The ROTAMAT® Fine Screen is extremely sturdy, able to deal with rocks and grit, and is entirely made of stainless steel. It is fully self-cleaning as its rake tines fully engage with the basket.
